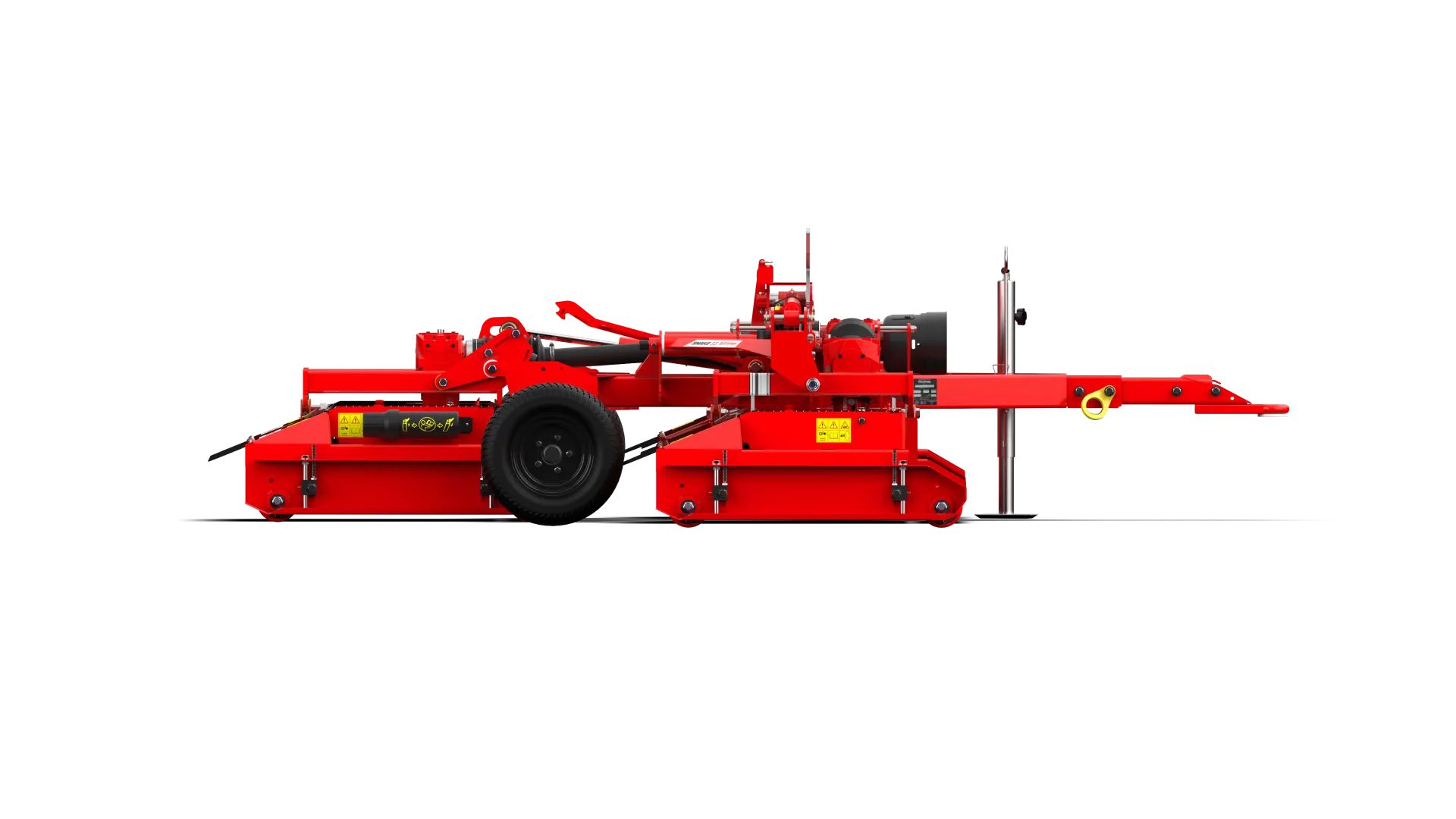

Snake S3

Snake S3

The Trimax Snake S3 sets the standard for trailed rotary mowing and is trusted by many prestigious golf courses and turf farms worldwide. Studied by the Sports Turf Institute of New Zealand, the Trimax Snake cutting system delivers cut quality comparable to cylinder mowers while offering the versatility and reliability of Trimax’s renowned rotary design.

With zero daily maintenance, the Snake S3 makes operations even more efficient for turf professionals. It features the Titan roller bearing system and maintenance-free wheel hubs, which together eliminate the need for daily greasing. These innovations further reduce the cost of ownership, allowing owners and operators to focus on what matters most—mowing.

Backed by Trimax’s industry-leading 3-year warranty, the Snake S3 redefines productivity and operational efficiency. Sports Turf Solutions is proud to be the distributor of the Snake S3 in the Southeast Asian region, ensuring that turf professionals in this area have access to this exceptional mowing solution.

Enquire Now

SPECIFICATION

GXi8 HD Techincal Data
Specifications  320  400
Cutting Width  3.20m (10′ 7″)  4.00m (13′ 1″)
Overall Width  3.36m (11′ 1″)  4.12m (13′ 6″)
Overall Length  3.6m (11′ 10″)  3.6m (11′ 10″)
Transport Width  2.14m (7′ 1/4″)  2.14m (7′ 1/4″)
Transport Height  1.86m (6′ 1″)   2.24m (7′ 4″)
Cut Height Range  10-100mm (3/8″ – 4″)  10-100mm (3/8″ – 4″)
No. of Blade Spindles  9  11
Approx. Weight  1350 kg (2976 lbs)  1480 kg (32584 lbs)
Min PTO Output  35hp  45hp
The advantages

QuikLIFT

QuikLIFT enables mowing decks to be raised slightly for traversing paths without the need to disengage the PTO.

Full Width Rollers

Full width rollers minimise scalping in undulating conditions, allowing for mowing over kerbsides and bunkers, while leaving a premium striped finish.

Zero Turn

Allows continuous cutting while turning sharply for maximum productivity.

LazerBladez

LazerBladez offer a superior finish with a cost-efficient design, as only the fling-tip needs replacing. Available in uplift and flat formations, their tilt-forward design minimises hang-back in tough conditions.

Ease of Use

The Snake’s compact design allows easy towing, new collars simplify height adjustment, and removable blade beams ensure easy blade changes.
